The classic LED touch lamp base display soft and decorative lights through 4mm thickness acrylic plaque (not included on this SKU) for various occasions, such as living rooms, bedrooms, custom DIY projects, business presentations, and commercial applications.
Classic RGB LED Touch Lamp Base
US$8.20
The classic LED touch lamp base has 10x RGB LED beads to produce soft & decorative lights that light up your home and office.
The lamp base has two RGB light dimmers – the touch controller has 6x colors, and the remote control has up to 16x colors. The classic lamp base takes power from a 5Volt Micro USB power adapter or 3x AA batteries.

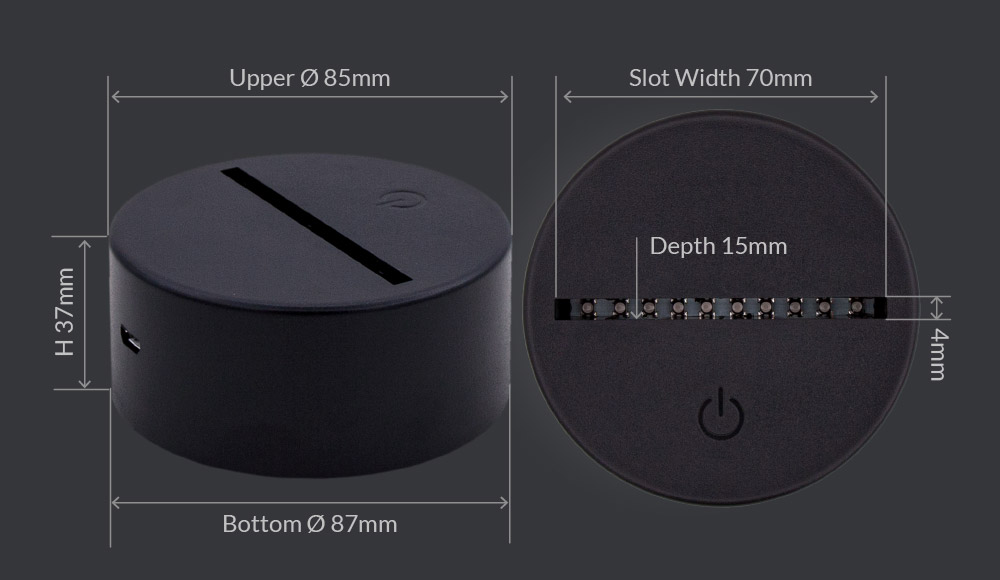

Lamp Slot – Width 70mm (2.76″) / Depth 15mm (0.59″) / Thickness 4mm (1/8″)
The lamp slot on the classic LED light base supports 4mm thick plates, including acrylic (resin glass), mineral glass, crystal glass, etc.
The plates should use the above maximum dimensions to touch the LED beads. Using the proper size ensures the plate stands stably and maintains the displaying lights.

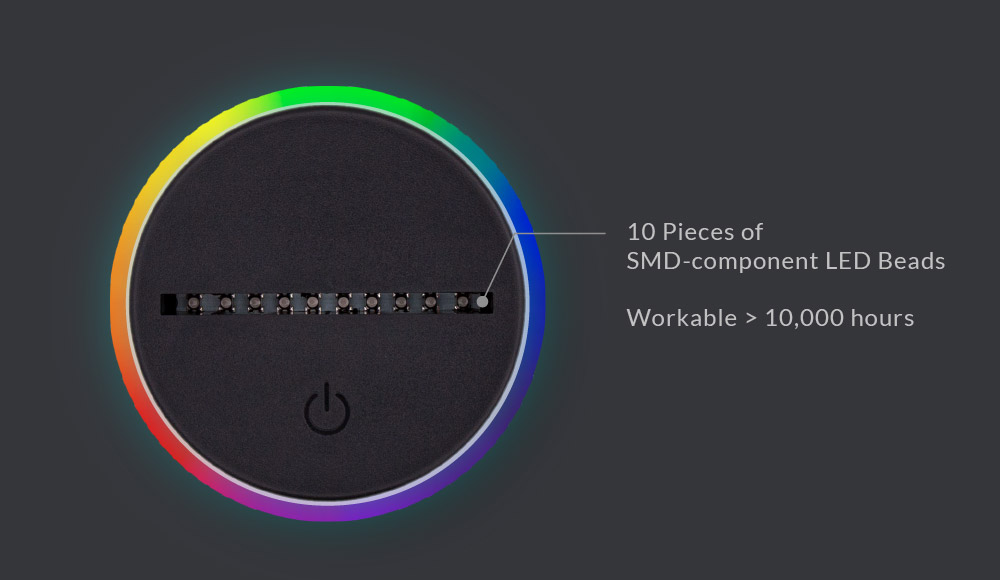

Lamp Base with 10x RGB LED Beads
Ten durable SMD-component LED beads power the classic lamp base to produce pure LED lights and are workable for up to 10,000 hours.
RGB, which stands for Red, Green, and Blue, is the three primary colors of the additive color lighting system. Each parameter color defines the intensity between 0 and 255, meaning 256 x 256 x 256 = 16,777,216 possible colors!

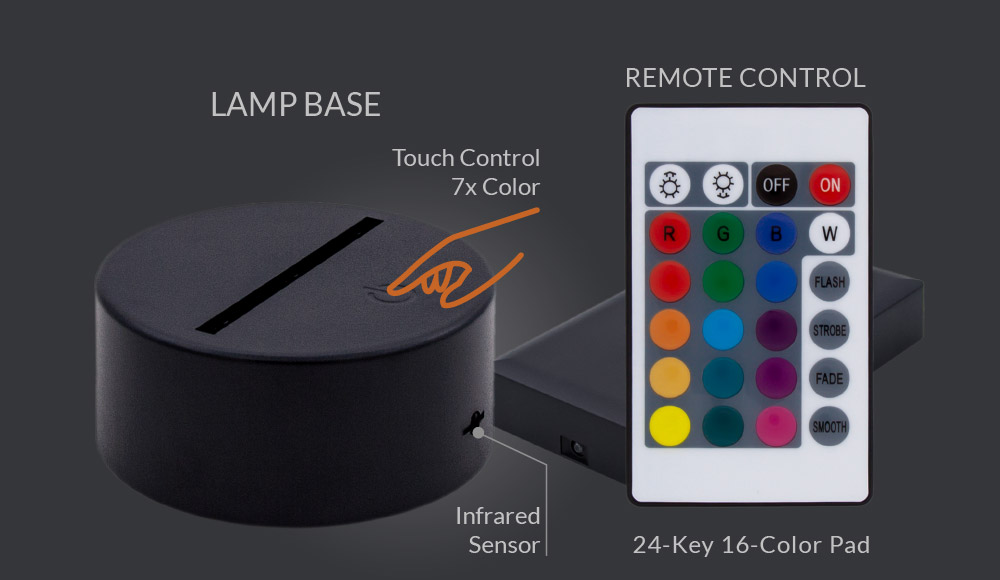

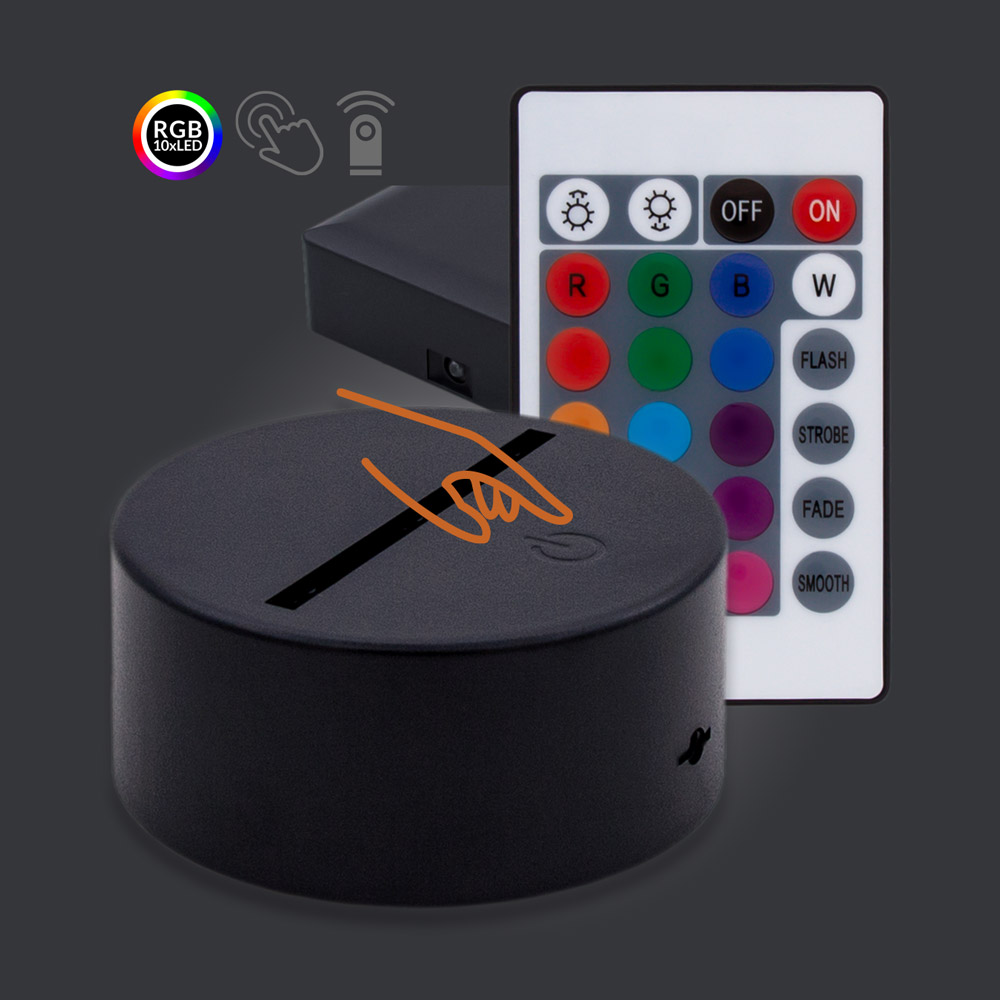

Dual RGB LED Light Dimmers

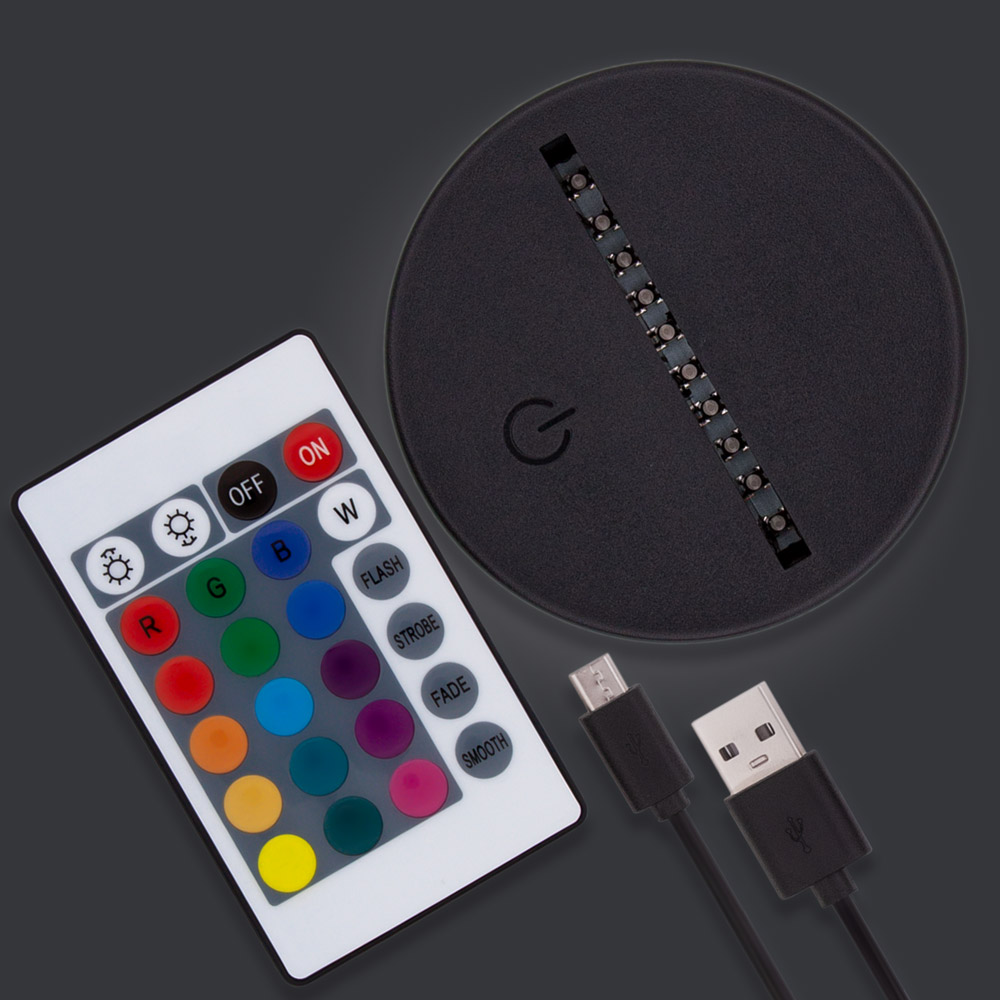

You can quickly turn on/off the lamp base and control the display colors on the touch control on the lamp base and the infrared remote control.
- The touch controller is pre-programmed with seven standard colors, including Red, Green, Blue, Yellow, Cyan, Purple, and White, and four fade flash modes.
- The latest infrared remote control (IRC) uses 2x AA batteries and has a 24-key pad with 16 different light colors and 4x fade & flash modes.

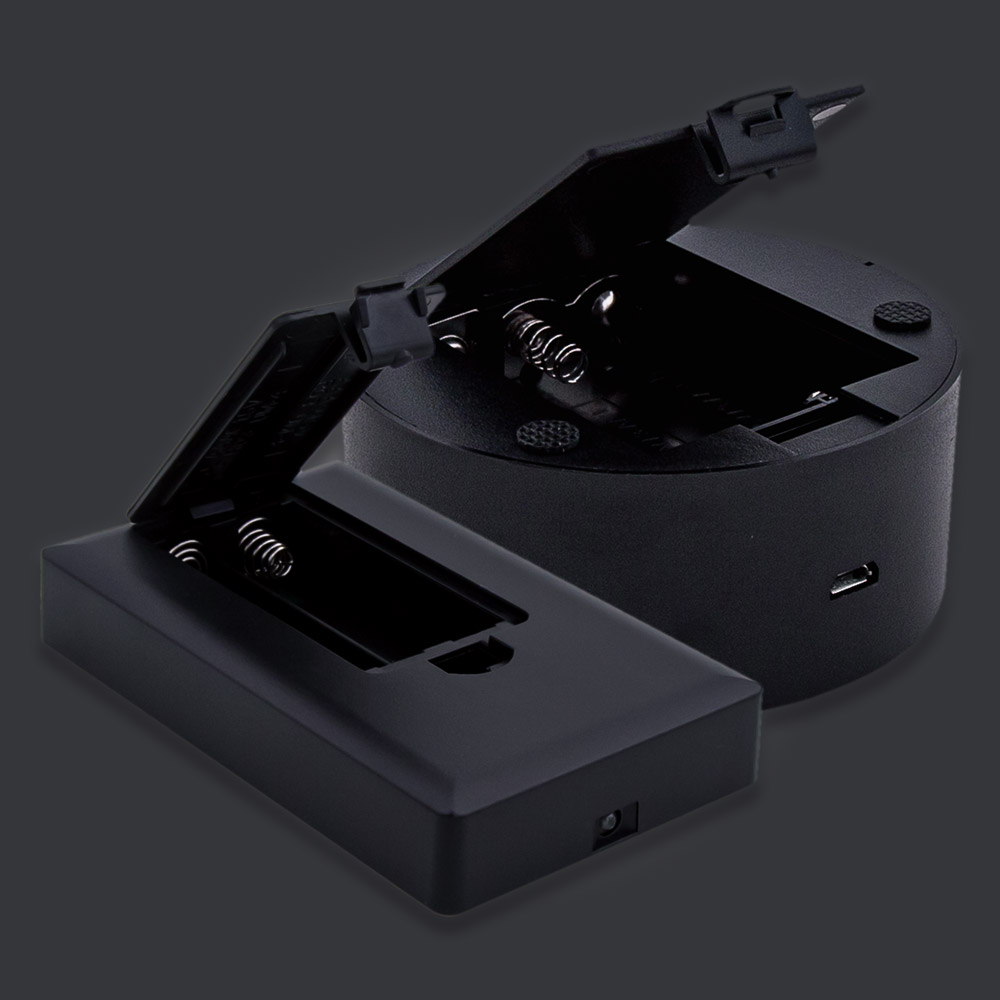

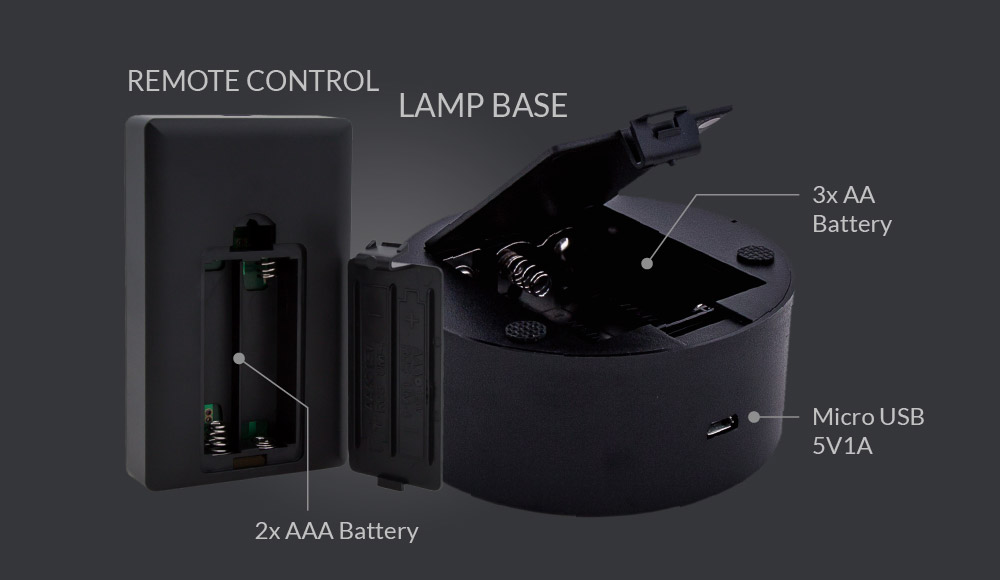

5VDC and 3x AA Battery Powered Lamp Base
The classic lamp base operates on standard 5Volt 1Amps DC power through an included 1-meter USB cable. The DC power adapter is not included. You can also use three AA batteries in the battery holder to power up the lamp base. The lamp base uses DC power prior to AA batteries when connecting to DC power.
The 2022 new infrared remote control uses 2x AAA batteries instead of a C2032 button battery in the legacy mode.
Lamp Base Specifications
| LED Beads: | 10x SMD RGB LEDs |
| LED Life Time: | 10,000 hours |
| Light Colors: | Touch Control: 7x Colors Remote Control: 16x Colors |
| Lamp Base Dimension: |
Upper Ø 85mm Bottom Ø 87mm Height 37mm |
| Slot Dimension: | Width 70mm Depth 15mm Thickness 4mm |
| USB Power: | 5Volt 1Amps |
| Battery Socket: | 3x AA Battery (Exclude) |
| Certifications: | CE UKCA RoHS |
| Net Weight: | 85 Gram |
| Package Weight: | 115 Gram |
Frequently Asked Questions
Which type of plate/glass fits the lamp base?
The lamp slot measurements are Width 70mm (2.76″) / Depth 15mm (0.59″) / Thickness 4mm (1/8″).
You can use 4mm standard thickness plates. Please use the proper size to ensure the plate stands stably and maintains the displaying lights.
How to power up the lamp base?
The lamp base operates on standard 5Volt 1Amps DC power. The package includes a 1-meter USB cable but excludes the DC power adapter. You can also use three AA batteries in the battery holder to power up the lamp base.
The infrared remote control uses 2x AAA batteries.
Where to order the acrylic plaques?
You can choose blank, well-cut & engraved acrylic plaques under the Galley category on the top menu.
We also offer a custom service to cut any shape as requested.
Why is the price higher than others?
Our mission is to produce high-quality products that last for years. All the components are high class and well built, such as 100% new material, SMD LED beads on board, rubber mats, etc.
We offer wholesale discounts on bulk orders. Check out more about the reseller program.
